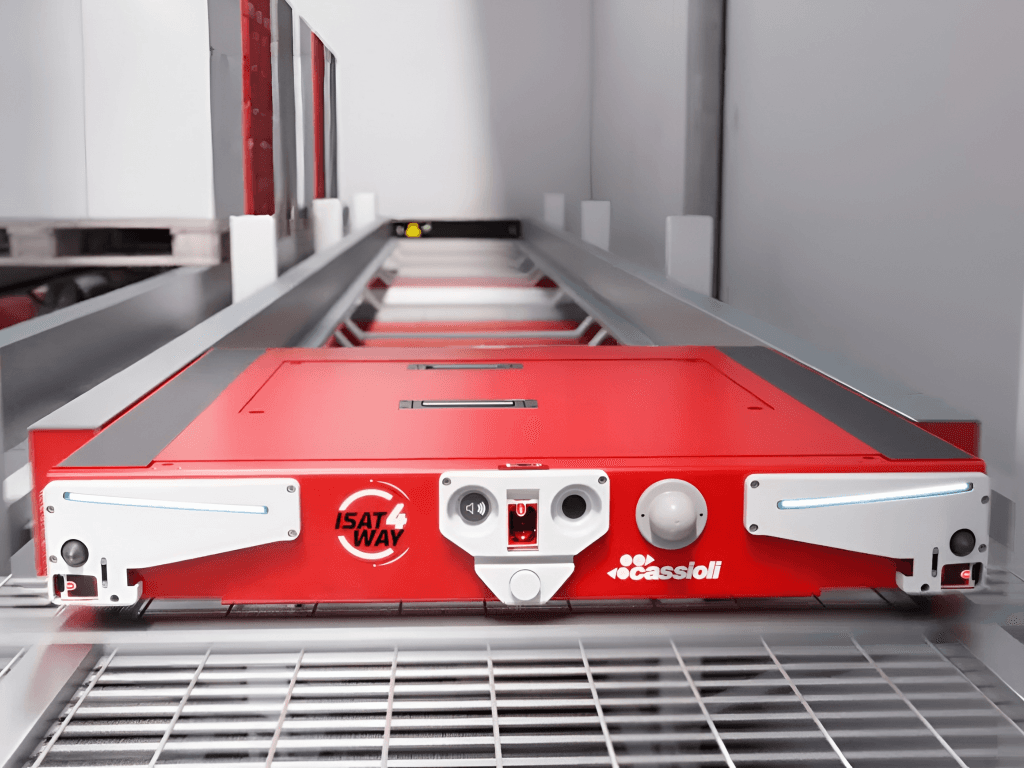

ISAT 4-Way Pallet Shuttle FAQs: Everything You Need to Know for Your Warehouse

The ISAT 4-Way Pallet Shuttle provides smarter storage, greater capacity and maximum flexibility in warehouses across the UK.

For businesses and warehouses seeking automated, high-density pallet storage, the ISAT 4-Way Pallet Shuttle provides a flexible solution for multi-depth storage, with four-way movement longitudinally and transversely, while integrated lifts provide vertical movement between storage levels.

In this guide, we'll answer some of the most frequently asked questions about the ISAT 4-Way Pallet Shuttle, including storage capacity, automation, integration, applications, installation and ongoing support.

• Storage Capacity & Space Optimisation FAQs
• Automation & Operational Efficiency FAQs
• Flexibility, Integration & Scalability FAQs
• Applications & Warehouse Environment FAQs

Storage Capacity & Space Optimisation FAQs

How much storage space can a 4-Way Pallet Shuttle system save?

4-Way Pallet Shuttles significantly increase storage capacity by using high-density, multi-depth pallet storage. The exact space saving can vary per warehouse and depends on factors such as warehouse dimensions, pallet sizes, storage height and capacity requirements.

How does a 4-Way Pallet Shuttle maximise warehouse storage capacity?

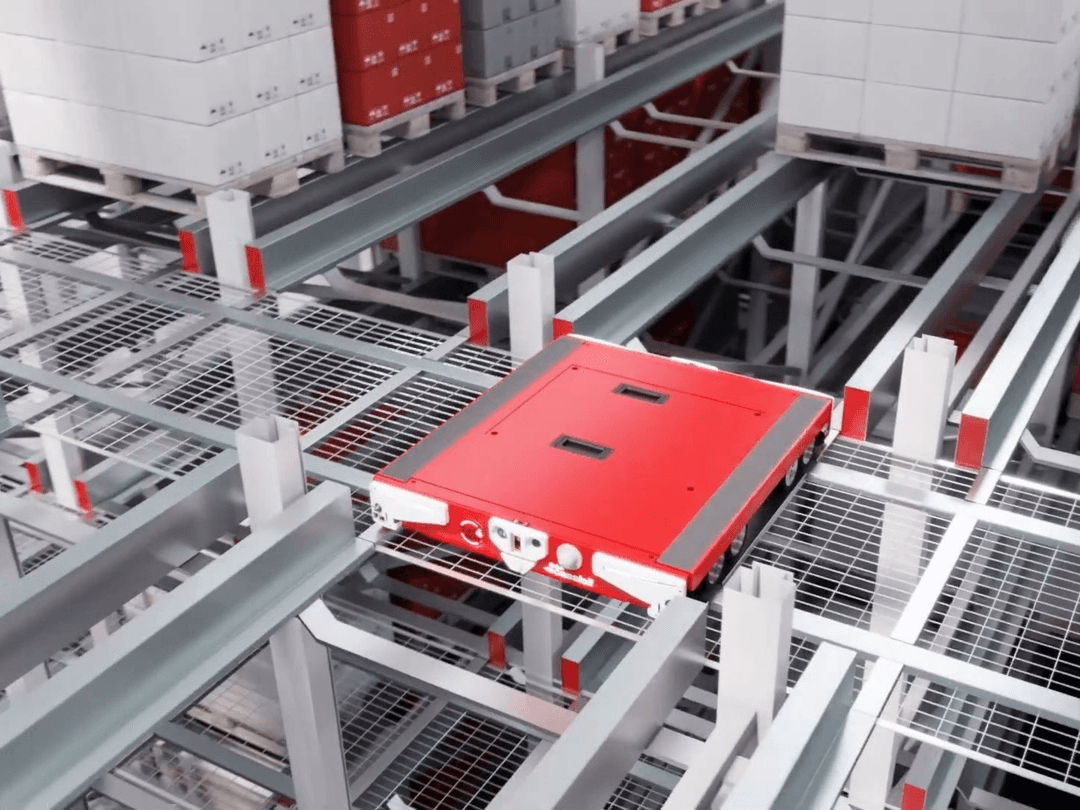

The ISAT 4-Way Pallet Shuttle maximises warehouse storage capacity by combining high-density, multi-depth pallet storage with four-way movement. The shuttle can move longitudinally and transversally, with vertical movement provided by integrated lifts, allowing pallets to be stored and retrieved across multiple depths, levels and locations.

What is multi-depth pallet storage and how does it work?

Multi-depth pallet storage allows multiple pallets to be stored one behind another within the same storage lane, rather than limiting storage to a single pallet position at the front. With the ISAT 4-Way Pallet Shuttle, the shuttle independently moves through the storage structure to position and retrieve pallets at different depths. Its four-way movement provides the flexibility required to access multiple storage locations efficiently.

Can it help maximise the use of existing warehouse space?

The ISAT 4-Way Pallet Shuttle is specifically designed to make better use of available warehouse space through high-density, multi-depth storage and compact pallet positioning. Its ability to move in multiple directions allows pallets to be stored across multiple depths and levels, while the system's precise positioning and 3D warehouse mapping support efficient use of the available storage.

Can a 4-Way Pallet Shuttle reduce the need for warehouse expansion?

It can help reduce or delay the need for warehouse expansion by increasing storage capacity within the available warehouse space. The ISAT 4-Way Pallet Shuttle is designed for high-density, multi-depth storage and extremely compact pallet positioning, allowing businesses to make better use of their existing space.

Is a 4-Way Pallet Shuttle suitable for high-density pallet storage?

Yes. High-density pallet storage is one of the key applications of the ISAT 4-Way Pallet Shuttle. The system is designed specifically for multi-depth applications, with four-way movement enabling flexible storage and retrieval across multiple depths and locations. The ISAT 4-Way is a high-density AS/RS solution capable of maximising storage density.

Automation & Operational Efficiency FAQs

How does a 4-Way Pallet Shuttle system work?

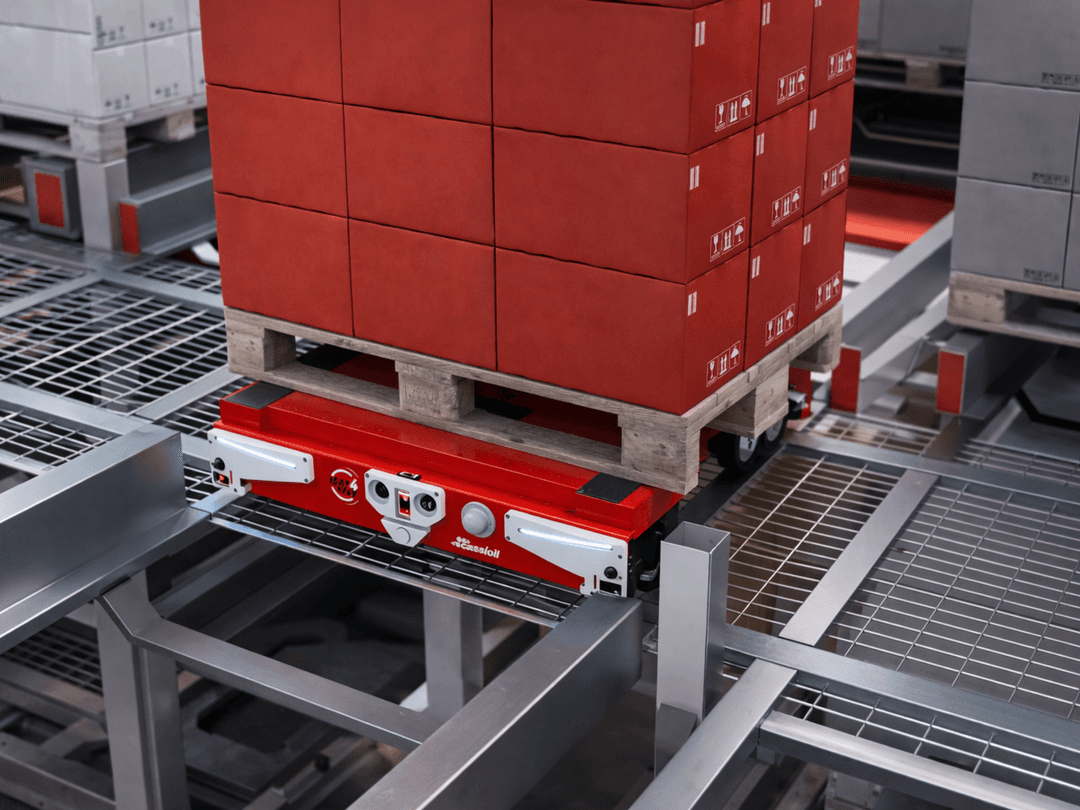

The Cassioli 4 Way Pallet Shuttle automates the movement, storage and retrieval of pallets within a high-density warehouse. Pallets are transferred into the system via conveyors and lifts, where an automated shuttle transports each pallet to its designated storage position. The system uses 3D warehouse mapping to accurately track storage locations and position both the shuttle and pallets precisely. This enables efficient, reliable pallet handling while making the most of the available warehouse space.

Is the ISAT 4-Way Shuttle able to operate 24/7?

Yes. The ISAT 4-Way Pallet Shuttle is designed for high-throughput, 24/7 operation, providing reliable automated pallet storage and retrieval around the clock. For warehouses where continuous operation, high storage density and consistent handling performance are essential, the ISAT 4-Way can provide a highly flexible automated storage solution.

How does a 4-Way Pallet Shuttle improve warehouse efficiency?

The 4-Way Cassioli Pallet Shuttle automates pallet storage and retrieval, enabling high-density storage and efficient access to pallets. The ISAT can move in four directions and operate across multiple levels, helping maximise available warehouse space.

Can a 4-Way Pallet Shuttle reduce manual pallet handling?

Yes. The ISAT automates pallet movements within the warehouse, reducing the need for manual handling and forklift movements in storage areas.

Can a 4-Way Pallet Shuttle help improve warehouse safety?

Yes, it can help improve overall warehouse safety. By reducing manual pallet handling and limiting the need for operators to enter storage areas, the ISAT can help reduce handling risks and workplace accidents.

How does automated pallet storage help reduce product damage?

Automated pallet movement reduces unnecessary manual handling and forklift activity, helping minimise the risk of pallet damage and handling errors while providing precise, controlled storage and retrieval.

Flexibility, Integration & Scalability FAQs

Can the system be integrated with an existing warehouse?

Yes. The system can be adapted to suitable existing warehouse infrastructure, including drive-in storage structures. This can help businesses introduce automated pallet handling while making better use of their existing space and facilities.

Can a 4-Way Pallet Shuttle integrate with existing warehouse automation?

Yes. The ISAT 4-Way Pallet Shuttle is designed to integrate with automated warehouse systems, including conveyors, lifts and other material-handling equipment, to support a complete automated storage solution.

Can the system integrate with a Warehouse Management System (WMS)?

Yes. The ISAT can integrate with warehouse management and control systems to coordinate automated pallet storage and retrieval, allowing it to form part of a wider automated warehouse operation.

Can it adapt to changing storage requirements and seasonal demand?

Yes. The system, supplied and installed by Diamond Phoenix, can be scaled by adjusting the number of shuttles, allowing capacity and throughput to be adapted to changing storage requirements and seasonal demand.

Can a 4-Way Pallet Shuttle handle different pallet sizes?

Yes. The Cassioli 4 Way Pallet Shuttle can accommodate pallets of different sizes, making it a flexible solution for warehouses handling a varied pallet mix. The system can be configured to suit your specific pallet dimensions and storage requirements.

Can the system be scaled as storage requirements grow?

Yes. The system is designed to adapt to changing storage demands, with additional shuttle vehicles and storage capacity able to be added as your requirements evolve, making it suitable for businesses experiencing growth, changing product volumes or peaks.

Applications & Warehouse Environment FAQs

What types of warehouses are suitable for a 4-Way Pallet Shuttle?

A 4-Way Pallet Shuttle is suitable for a wide range of warehouse environments, particularly high-density, multi-depth storage applications, warehouses with high SKU variability, distribution and e-fulfilment operations.

Is a 4-Way Pallet Shuttle suitable for cold storage and frozen warehouses?

Absolutely. The system is suitable for temperature-controlled environments, including cold storage and frozen-food applications.

Can the ISAT 4-Way Shuttle operate in temperatures as low as -30°C?

Yes. The ISAT 4-Way Shuttle is designed to operate reliably in temperatures as low as -30°C, making it suitable for demanding cold storage and frozen warehouse environments where automated pallet storage and retrieval are required.

Is a 4-Way Pallet Shuttle suitable for food and beverage warehouses?

Yes. Its ability to operate at temperatures as low as -30°C makes the ISAT suitable for cold-storage and frozen-food applications within the food and beverage sector.

Is a 4-Way Pallet Shuttle suitable for 3PL and distribution operations?

The ISAT 4-Way Pallet Shuttle is well suited to 3PL and distribution operations, where efficient storage and reliable pallet movement are important. Its high-density storage capability and flexible pallet handling can help businesses make better use of warehouse space while adapting to changing storage and throughput requirements.

Is a 4-Way Pallet Shuttle suitable for warehouses with high SKU variability?

Yes. The ISAT is specifically designed for multi-depth applications and warehouses with high SKU variability, providing flexible access across multiple depths, levels and locations.

Contact Diamond Phoenix Automation

Diamond Phoenix Automation is a long-serving partner of Cassioli, supplying and installing the ISAT 4-Way Pallet Shuttle across the UK and Europe.

Our warehouse automation specialists help businesses optimise storage capacity, improve handling efficiency and make better use of available warehouse space.

Whether you're looking to upgrade an existing warehouse or implement a new automated storage solution, we help you identify the right approach for your storage requirements and future growth.

Find out how the ISAT 4-Way Pallet Shutter could work for your warehouse.

Call our team on 01908 592354 or complete our online contact form to discuss your requirements.
