Modular Conveyor Belts

Designing and integrating high-quality modular belt conveyors

belt modular conveyor

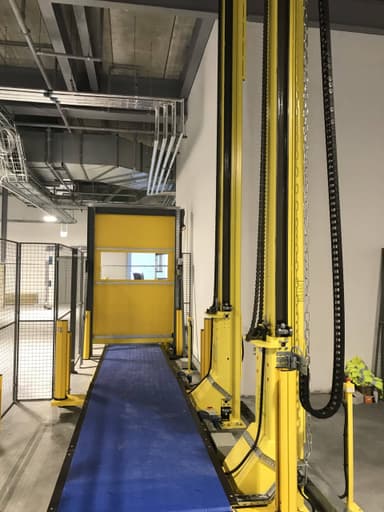

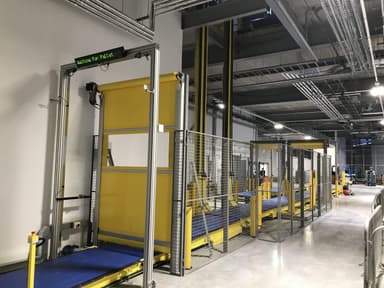

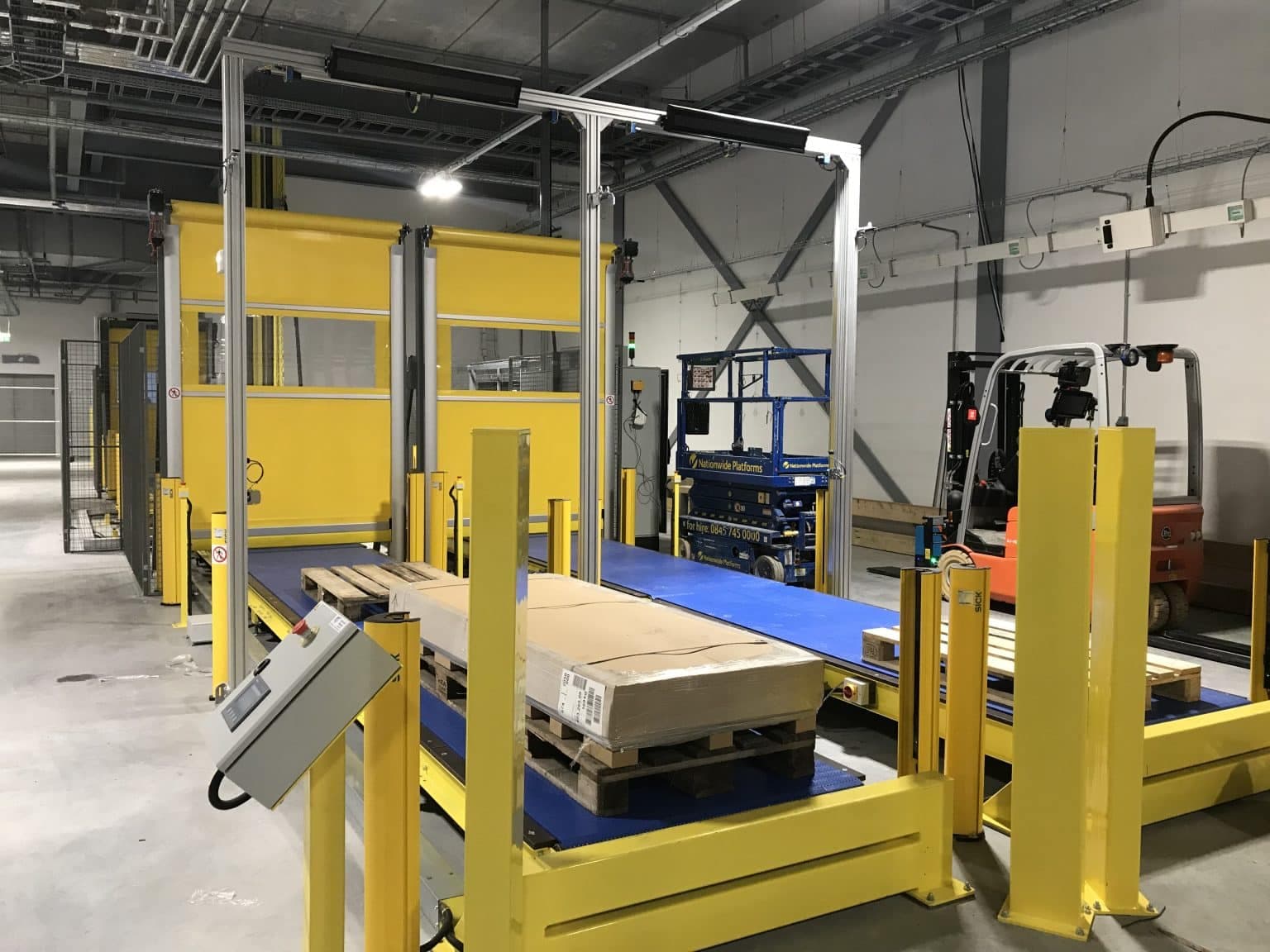

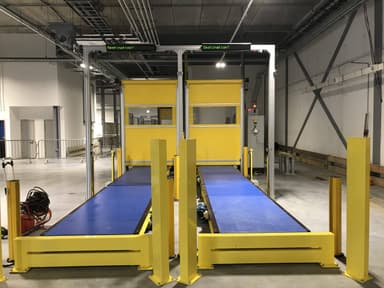

Looking for a high-quality modular conveyor belt? Our Modular Conveyor Belts is a state-of-the-art modular plastic chain conveyor system. It provides a solid travelling surface for the unit loads, which offers many advantages. Each section of the conveyor is powered independently allowing simultaneous load movement and load building.

Gaps between adjacent sections have been minimised to provide greater stability and ensure transfer of the smallest of items. The System can be used for most conveying applications from palletised goods to furniture, stacks of timber and card, paper reels, parcel handling and vehicles in assembly.

Get in touch with us today by calling us directly on 01908 592354 or use our contact form and we’ll get back to you as soon as possible regarding your modular conveyor belt enquiry.


Between Frame Widths:
  • 0.8m, 1.05m,1.2 m, 1.5 m, 1.8 m, 2.1 m, and 2.4 m
  • Various widths can also be used in combination for extra-wide conveyors
  • 3 m, 6m and 9 m
  • Standard with other lengths available
Chain Material:
  • Acetal plastic solid platform comprised of 25 mm (1”) segments joined by lacing rod with
  • nylon retaining pins. Acetal plastic offers super low friction, high tensile strength and
  • excellent resistance to wear on continuously highly-loaded conveyors.
Load Rating:

6,800 kg per unit using optional 4.0kw motor

Conveyor Speeds
  • 12 and 18 MPM Standard
  • Speed options vary by application & fully adjustable by vfd.
Drive Components:

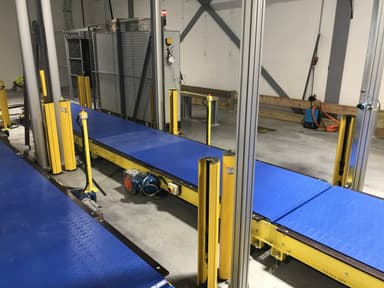

Flange-mounted gear motor directly coupled to a square drive shaft with sprockets.

Product Construction:

Rugged frame is precision CNC cut and formed in mild or stainless sheet metal.


What industries is a modular belt conveyor most suitable for?

Modular conveyor belts can be used for various applications and industries including; Automotive, Distribution, Airports, Food & Beverage, E-Fulfilment, and more. Belt conveyors are the most suitable type of conveyor for industries that require the transportation of products in a straight line or through changes in direction or elevation. This type of conveyor is highly robust and resistant which makes them also suitable for tough environments with minimal maintenance required.

What are belt conveyors used to transport?

Belt conveyors have the capability to transport a multitude of different types of items and components across a diverse range of industries. One of the most common places where you’ll see this type of conveyor working efficiently is at airports. Moreover, modular conveyors are also suitable for transporting heavier items on pallets, plastic boxes, food and beverage products, and further components.

What are the main benefits?

One of the most notable benefits of modular belt conveyors is their sheer versatility which makes an attractive type of conveyor. The conveyor belt is highly versatile due to the fact that there are numerous different belt materials to select from. As a result of this, a wider range of objects are able to be transported. Another key benefit of conveyor belts is that they are extremely durable, long-lasting, chemical-resistant, and can be exposed to both hot and cold temperatures. Furthermore, you’re also guaranteed reduced down and higher energy efficiency.

Can you manufacture to our requirements and specifications?

Yes, of course we can. As previously mentioned, modular belt conveyors are highly flexible and can therefore be manufactured to your bespoke requirements and specifications. Just a few of the variable factors that you’re able to select to suit your preferences include; fixed or variable speed, adjustable height, hot or cold environments, flat or inclined, and more. Get in touch with us today to discuss your bespoke modular conveyor belt.

Will they be designed to the highest safety and compliance?

All conveyors designed and manufactured by Diamond Phoenix are designed to meet the very highest safety and compliance regardless of the design parameters. We’ll make sure that your conveyor belt can be used efficiently whilst reducing downtime and keeping all nearby people and/workers safe during the process of transporting items, products and components.

What other types of conveyors do you supply?

As well as modular belt conveyor systems, Diamond Phoenix are also able to supply and install the following types of systems for a multitude of applications:

• Belt Conveyors
• Bespoke Conveyors
• Carton Conveyors
• Gravity Roller Conveyors
• Pallet Conveyors
• Telescopic Boom Conveyors
• Vertical Conveyors

Why choose Diamond Phoenix?

We are a company that focuses on solutions over product applications and have a tried and proven process for solutions development across a wide and varied range of applications. We have a number of years of experience and are fully committed to continuous excellence in all we do.
